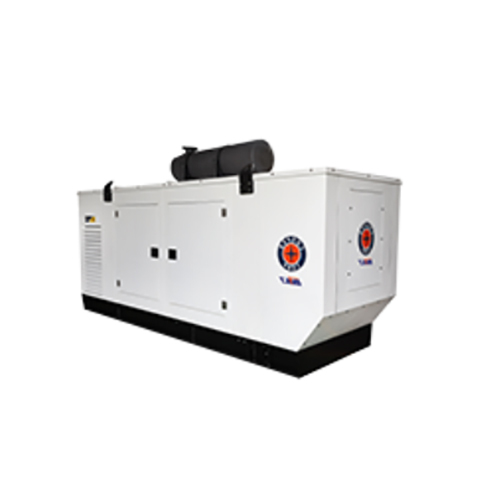

180 KVA GENSETS
Product Details:
X
Product Description
GENSET SPECIFICATIONS
| Power Rating (kVA) | 180 |
| Power Rating (KW) | 144 |
| Current (Amperes) | 250.4 |
| No. of Phase | 3 |
| Power Factor | 0.8 |
| Canopy Dimension (LxWxH) | 4051x1400x1750 |
| Canopy Dimension (mm) (LxWxH) with Silencer | 4051x1400x2300 |
ENGINE SPECIFICATIONS
| Engine model | 6B5D1C170RW |
| Rate power in kW (hp) | 170(231) |
| Aspiration | TCIC |
| Cooling System | Liquid Cooled |
| Starting System | 24 Volt Electrical |
| Governing | Mechanical |
| No. of Cylinders | 6 |
| BorexStroke (mm) | 107X126 |
| Displacement (Liters) | 6.8 |
| Fuel Cons. @ 75% Load* | 28.8 |
| Engine speed (RPM) | 1500 |
| Compression Ratio | 17.5:1 |
| Fuel Tank Capacity (Liters) | 300 |
| Lube oil specications | 15W40CI4+ |
| Lube oil Capacity (Liters) | 11 |
| Lube Oil Consumption (Lit/hr) | 0.01 %of Fuel Consumption |
| Total Coolant Capacity (Liters) | 22.8 |
| Genset Dry Weight (kgs) | 2670 |
ALTERNATOR SPECIFICATIONS
| Type | Brushless |
| Voltage | 415 |
| Speed / Frequency | 1500RPM/50HZ |
| Voltage Regulation | +/-1% |
| Enclosure | IP30 |
| Class of Insulation | Class H |
