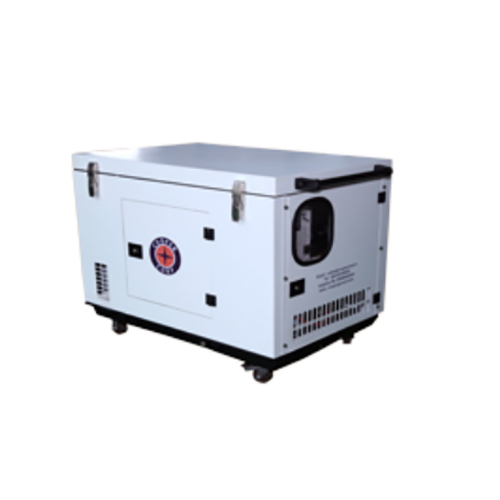

10 KVA GENERATOR GENSET
Product Details:
X
Product Description
GENSET SPECIFICATIONS
| Power Rating (kVA) | 10 |
| Power Rating (KW) | 8 |
| Current (Amperes) | 43.5/13.9 |
| No. of Phase | 1/3 |
| Power Factor | 0.8 |
| Canopy Dimension (LxWxH) | 1777x826x1395 |
| Canopy Dimension (mm) (LxWxH) with Silencer | 1900x825x1048 |
ENGINE SPECIFICATIONS
| Engine model | 2A1D1C10.3IW |
| Rate power in kW (hp) | 10.3 (14) |
| Aspiration | NA |
| Cooling System | Liquid Cooled |
| Starting System | 12 Volt Electrical |
| Governing | Mechanical |
| No. of Cylinders | 2 |
| Borex Stroke (mm) | 87X100 |
| Displacement (Liters) | 1.2 |
| Fuel Cons. @ 75% Load* | 2.21 |
| Engine speed (RPM) | 1500 |
| Compression Ratio | 19.5:1 |
| Fuel Tank Capacity (Liters) | 75 |
| Lube oil specications | 15W40CI4+ |
| Lube oil Capacity (Liters) | 4.5 |
| Lube Oil Consumption (Lit/hr) | "0.01 % of Fuel Consumption |
| Total Coolant Capacity (Liters) | 5.8 |
| Genset Dry Weight (kgs) | 670 |
ALTERNATOR SPECIFICATIONS
| Type | Brushless |
| Voltage | 230/415 |
| Speed / Frequency | 1500RPM/50HZ |
| Voltage Regulation | +/-1% |
| Enclosure | IP23 |
| Class of Insulation | Class H |
